Sanitation Gate for Human Body
Overview
Model CH-001
Manufacturer SUNNDER
Voltage AC110V~220V
Type Disinfection equipment
Dimension 40cm(L) 100cm(W) 205cm(H)
Origin Taiwan
Warranty 1 year
Product Description

Non-contact disinfection equipment: Disinfection is carried out through an UVC-LED germicidal lamp or a disinfectant spread in the direction of the human body with a micro-mist nozzle. These two methods can be carried out at the same time or alternatively to kill bacteria and viruses on clothes that are harmful to people's health, thereby reducing infections and the occurrence of illness.

Specifications
Voltage AC110V~220V
Dimension 40cm(L) * 100cm(W) * 205cm(H)
Box Size 40cm(L) * 30cm(W) * 60cm(H)
Spray Power 70 kg
Nozzle Size 6 * 0.15mm caliber
Spraying Time 1-60/second (adjustable)
Sensor Area type infrared sensor
Flow 5cc/second
Water Tank Capacity 20 l (with low water level alarm)
Voltage of UVC Germicidal Lamp 24V
Wattage of Germicidal Lamp 12W
Wavelength 222nm
Number of UVC LEDs 5PCS (92 * 70 * 19 mm)
Material Galvanized iron 304
Leveling Tripod
Moving Wheels
CE Certified Electronic Components

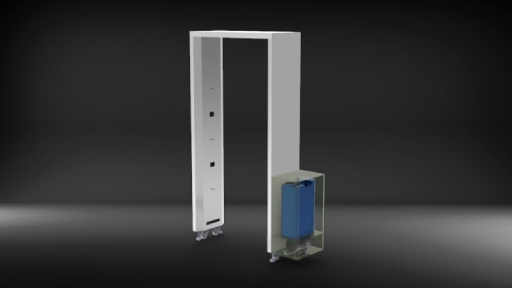

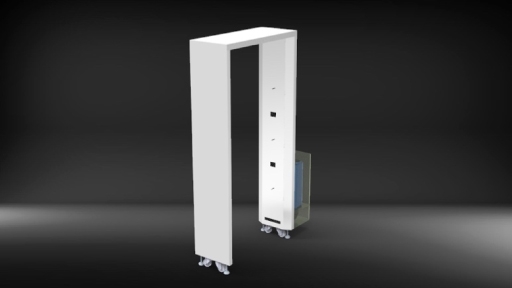

Schematic View
